HNC RG Series Roller Grinders
The Most advanced Roll Grinders in the World

HNC’s range of RG automatic roll grinder’s includes machines suitable for roll production from small high precision rollers to heavy duty quarrying rolls of over 6 metres (19.69 feet). The control systems enable rapid and easy set up for both simple and complex roll profiles. Each machine is designed around an easy to use graphical user interface for fully automatic operation.

Automatic Operation

HNC machines come with pre-programmed industry standard roll profiles which are easily selected from the list on the touch screen. The selected profile is then displayed graphically with dimensions. Dimensions can easily be altered by keying in the new dimension.

  • Standard Grinding Profiles :
  • Parallel
  • Cambered (Crowned)
  • Taper (Straight Taper)
  • Step taper (Trapezoidal)
  • Custom Profiles
  • HNC Grinders can also be pre-programmed with complex and specialist Roll Profiles
HNC RG Series Roller Grinders

RG Series Range

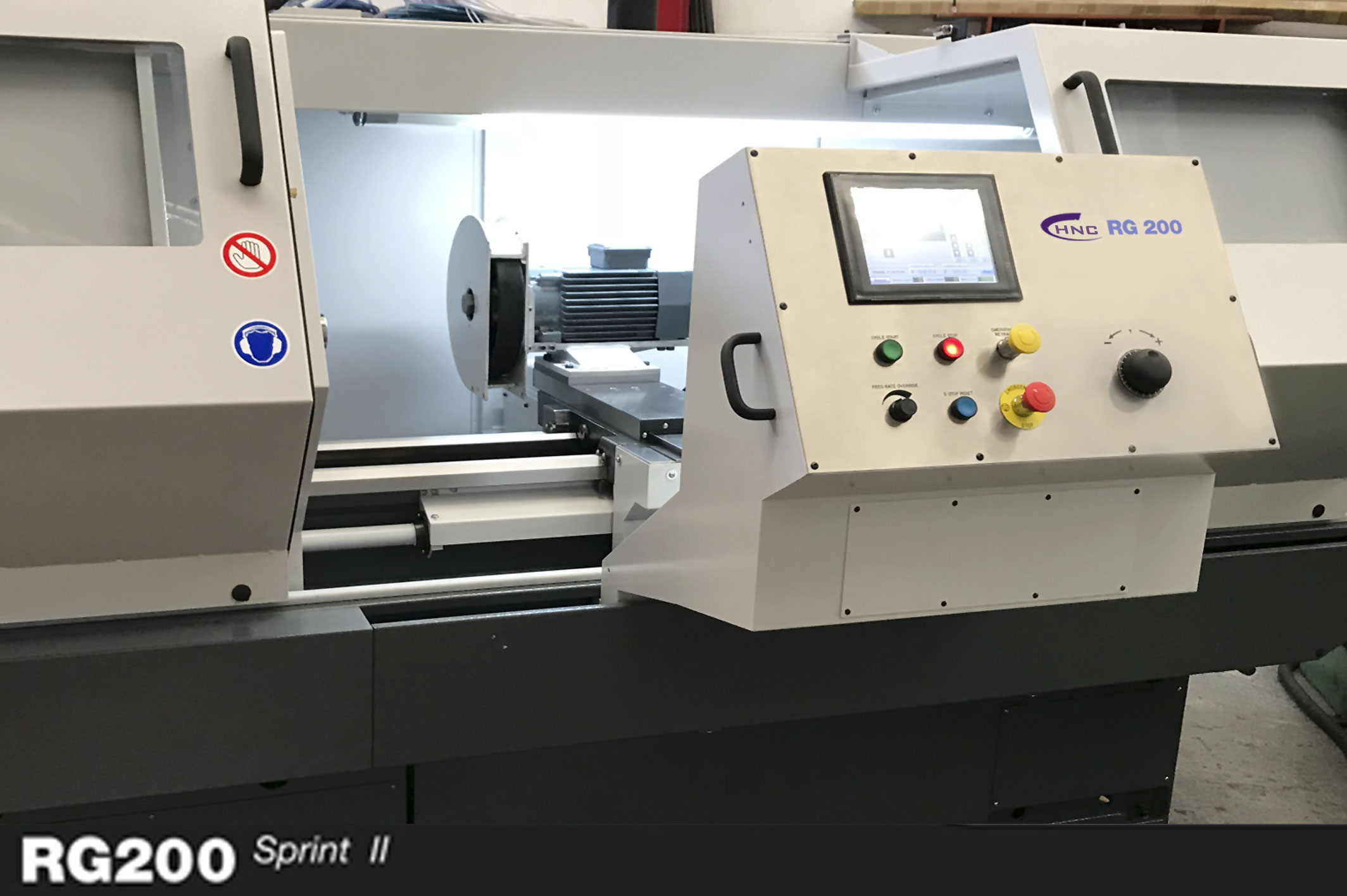

RG200 Sprint II

The high precision grinder for fast manufacture of premium quality small rolls.

Specifications »

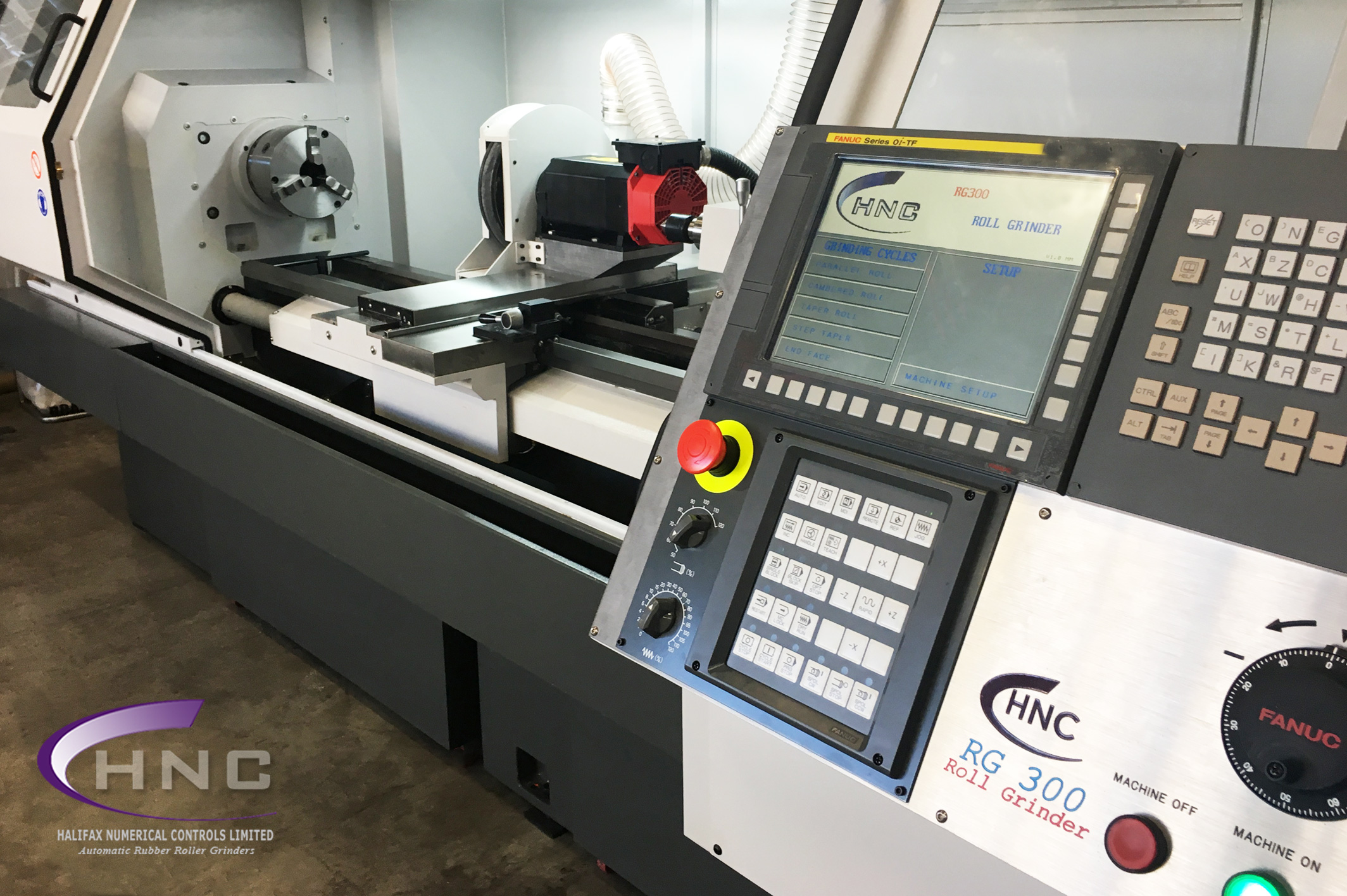

RG300 Series

A precision grinder for fast manufacture of premium quality rolls up to 300 mm diameter.

Specifications »

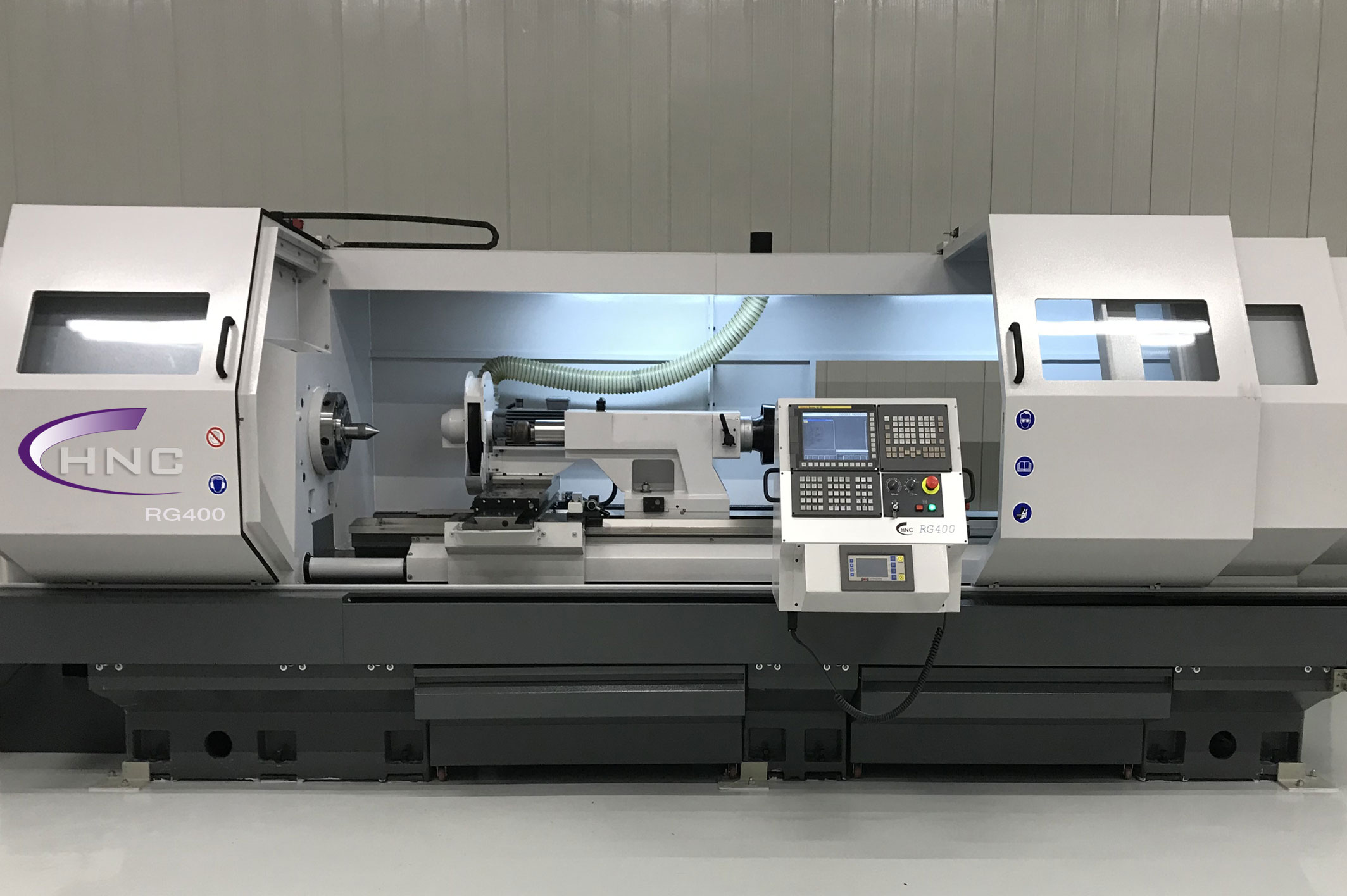

RG400 Series

A high speed grinder for fast manufacture of premium quality rolls up to 400 mm diameter.

Specifications »

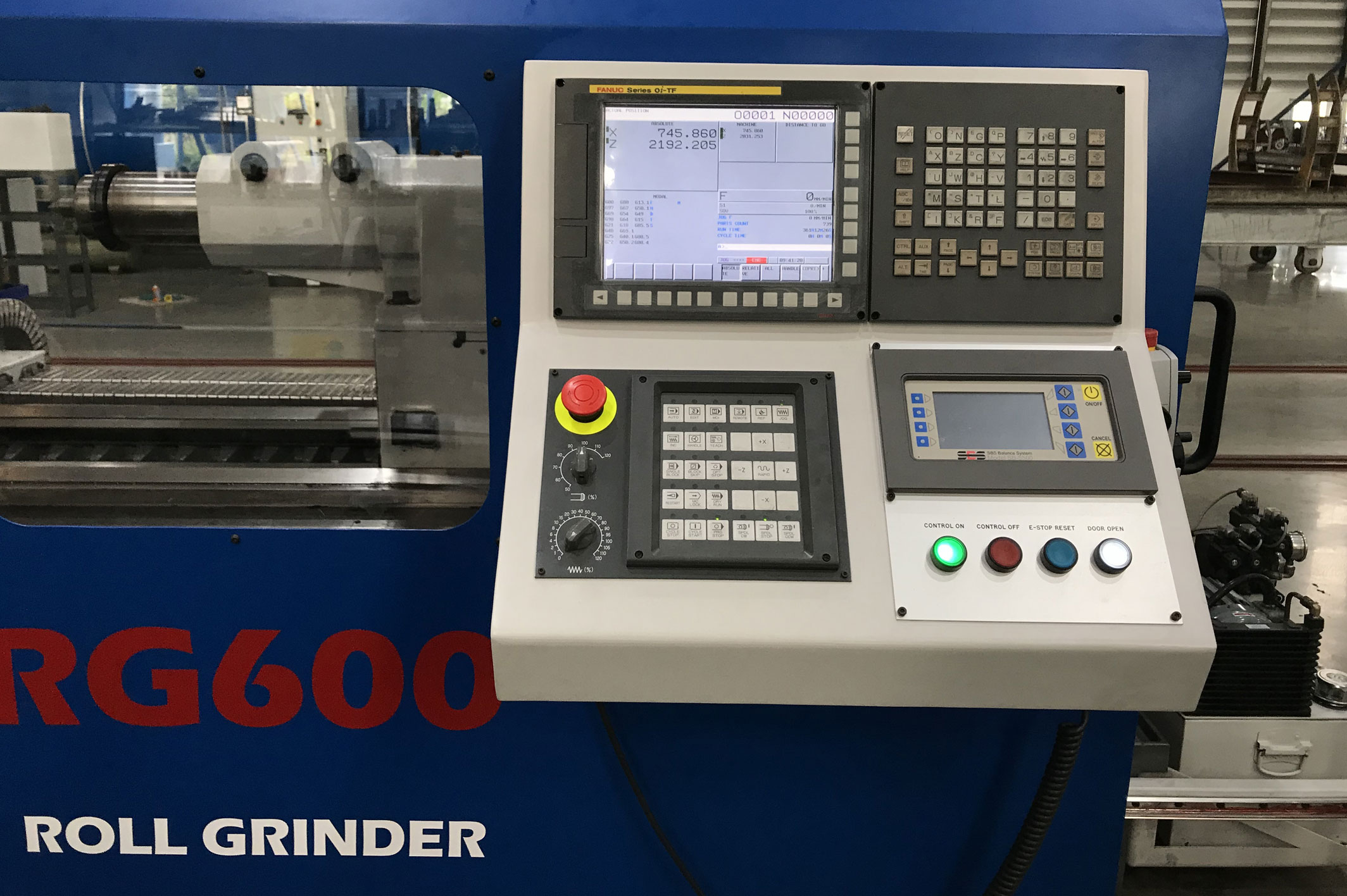

RG600 Series

The industry leading grinder for the manufacture of complex premium quality rolls up to 600mm diameter.

Specifications »
RG Custom

Roller Grinders bespoke built to customer specificaton.

Read More »

HNC Connect enabled machines link to an HNC engineer from anywhere in the world via a secure network. Unique to HNC, machine functions can be monitored, diagnosed & corrected or updated.
